| ワークサイズ: | 4000×8000mm | 作業台のT溝幅(mm): | 28 |
|---|---|---|---|
| スピンドルテーパ: | BT50 | 最大。穴あけ径(mm): | Φ90 |
| 最大。厚さ(mm): | ≤300 | タッピング径: | M3-M36 |
| 紡錘の速度（R/Min）: | 30~3000 | サーボ主軸モータ出力 (kW): | 22/30/37 |
Heat Exchanger Use Plate Cnc Drilling Machine Steel Plate Marking Machine Model PHD4080
Product Introduction:

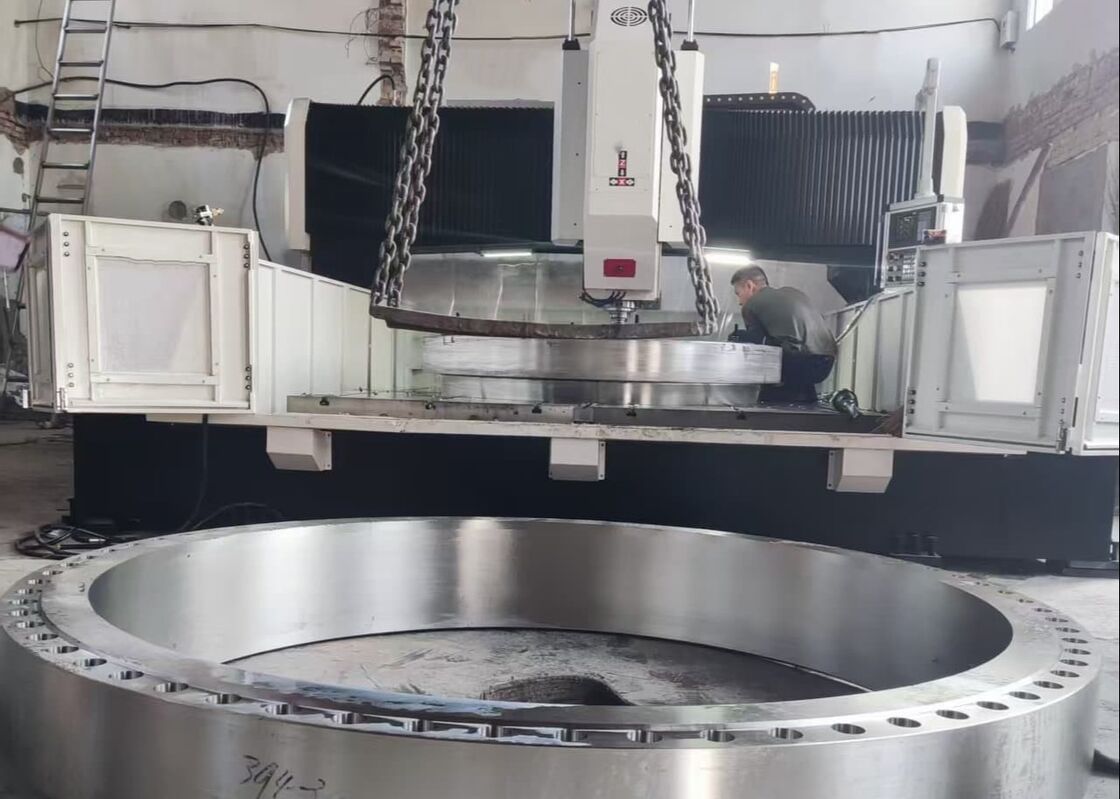

This equipment is a gantry-type mobile CNC high-speed drilling and milling unit, specifically engineered for drilling, tapping, and milling operations on components such as steel plates, flanges, heat exchangers, tube sheets, and slewing rings. It employs carbide drills with internal cooling for high-speed drilling applications. The system is integrated with either a KND or CNC bus control, facilitating user-friendly operation and supporting automation, high precision, and adaptability for small to medium-sized production volumes across a diverse range of products.
Product configuration:
| Model | PHD4080 | |
| Workpiece size | LxW (mm) | 4000x8000 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 or 2 |
| Spindle taper | BT50 | |
| Max. drilling diameter (mm) | Φ90 | |
| Max. thickness (mm) | ≤300 | |
| Tapping diameter | M3-M36 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 22/30/37 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 4000 |
| Lateral movement speed (r/min) | 0~6 | |
| Servo motor power for lateral movement (kW) | 3.6 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 8000 |
| Feed moving speed (m/min) | 0~6 | |
| Feed servo motor power (kW) | 3.6/5.5 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 1400 |
| Moving speed (m/min) | 0~4 | |
| Servo motor power (kW) | 3.6 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.015/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 13x6.9x6.2 |
Product features
1. The machine is primarily composed of a base, worktable, movable gantry, vertical ram-type spindle assembly, hydraulic system, pneumatic system, cooling system, centralized lubrication system, electrical control system, and an automatic chip removal mechanism.
2. In this machine series, the worktable and gantry are distinct components, with the gantry operating on two separate bases. This configuration substantially improves processing stability and accuracy, providing enhanced load-bearing capability.
3. The worktable is crafted from high-quality grey cast iron, ensuring exceptional durability and optimal performance.
The machine bed and worktable are fabricated from premium-grade gray iron (HT300), with stress relief achieved through a dual tempering heat treatment process. To minimize resonance during drilling operations and enhance the service life of the carbide drill, a distinct design for the bed and worktable has been adopted.
1. The automated chip removal and recirculating cooling systems effectively minimize downtime and reduce operator labor. The operator’s primary tasks are limited to loading and unloading workpieces and replacing the drills.
2. The machine is outfitted with a Taiwan BT50 spindle, designed for internal cooling and high-precision performance. It is fully compatible with carbide drills. Furthermore, the machine features a pneumatic tool cylinder to facilitate seamless tool changes. The high-power main spindle motor is driven by a servo-controlled synchronized belt, enabling it to accommodate a broad range of rotational speeds.
3. This CNC drilling machine is meticulously engineered to meet the specific characteristics of the workpiece and the precision demands of the application. It boasts a compact and versatile structure, ensuring optimal processing efficiency. Whether the holes are arranged in a circular or linear configuration, the machine executes the task with speed and accuracy, making it a highly cost-efficient solution.
The CNC gantry plate cutting machine is a durable industrial solution, carefully designed for the precise processing of plate-shaped components and structural parts. This machine is specifically tailored for handling workpieces such as flanges, discs, rings, and flat plates, as long as the material thickness is within the machine's specified effective machining capacity.
In steel structure manufacturing facilities, this plate drilling machine provides accurate drilling and milling operations on structural plates and connecting elements, forming a reliable foundation for the robust assembly of steel frameworks. In the wind energy industry, it delivers high-precision machining for wind turbine towers and flanges—critical processes that ensure these components can endure harsh environmental conditions, including extreme wind and temperature variations. For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections capable of withstanding dynamic loads throughout the bridge’s extended service life.
