CNCの訓練のための中国の最上質の製造、打ち、角度の機械、ビーム、版およびフランジを形作る製粉切れる!
新しいものをしなさい、よい物をしなさい!
|
商品の詳細:
お支払配送条件:
|
| ワークサイズ: | 4000×8000mm | 作業台のT溝幅(mm): | 28 |
|---|---|---|---|
| スピンドルテーパ: | BT50 | 最大。穴あけ径(mm): | Φ90 |
| 最大。厚さ(mm): | ≤300 | タッピング径: | M3-M36 |
| 紡錘の速度（R/Min）: | 30~3000 | サーボ主軸モータ出力 (kW): | 22/30/37 |

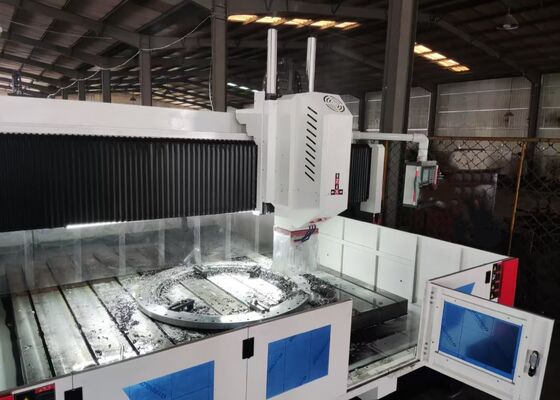

Petrochemical Equipment Manufacturing CNC Automatic Tool Change Drilling Machine Shipbuilding Industry
Product Introduction:

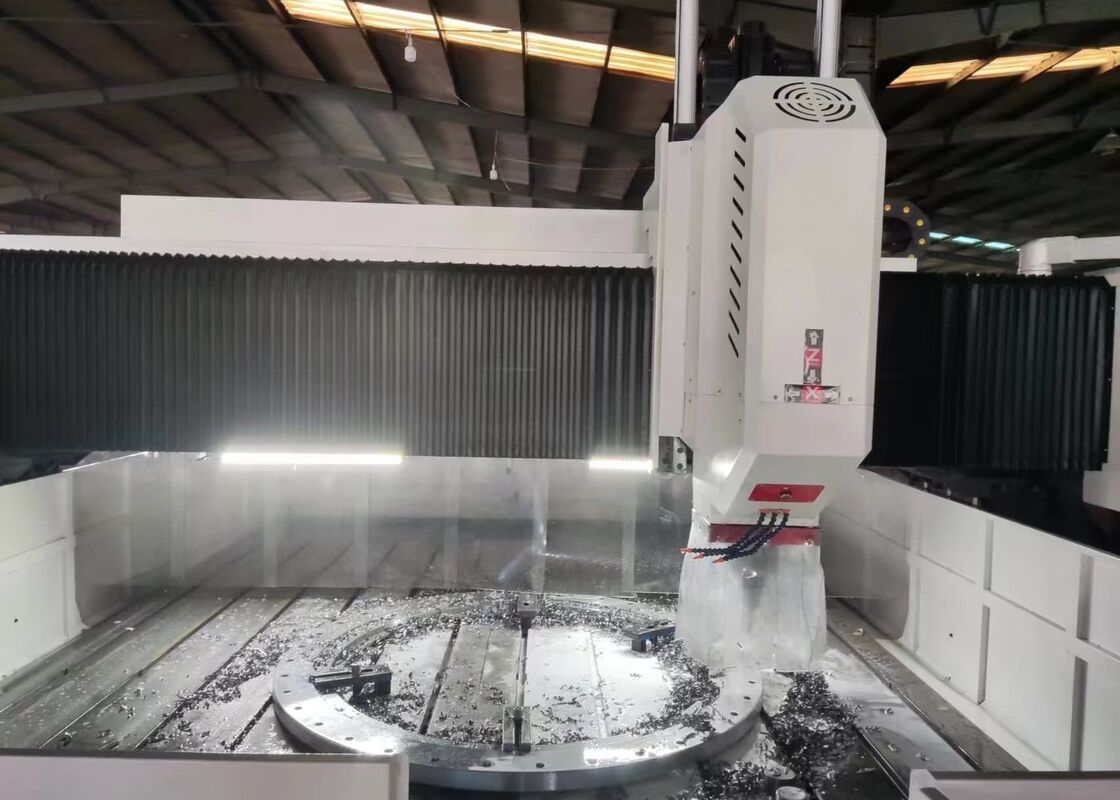

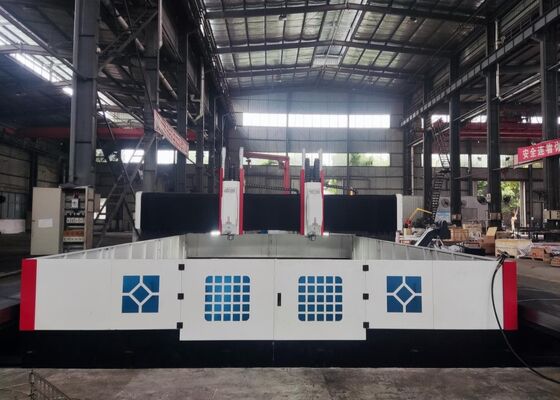

This machine is a gantry-type mobile CNC high-speed drilling and milling machine, primarily designed for drilling, tapping, and milling operations on components such as steel plates, flanges, heat exchangers, tube sheets, and slewing rings. It supports the use of carbide drills for high-speed drilling with internal cooling. The machine is equipped with a KND or Siemens CNC system for bus control, offering ease of operation and enabling automation. It is ideal for achieving high precision, versatility, and efficient production of small to medium-sized batches with multi-variety capabilities.
Product configuration:
| Model | PHD4080 | |
| Workpiece size | LxW (mm) | 4000x8000 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 or 2 |
| Spindle taper | BT50 | |
| Max. drilling diameter (mm) | Φ90 | |
| Max. thickness (mm) | ≤300 | |
| Tapping diameter | M3-M36 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 22/30/37 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 4000 |
| Lateral movement speed (r/min) | 0~6 | |
| Servo motor power for lateral movement (kW) | 3.6 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 8000 |
| Feed moving speed (m/min) | 0~6 | |
| Feed servo motor power (kW) | 3.6/5.5 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 1400 |
| Moving speed (m/min) | 0~4 | |
| Servo motor power (kW) | 3.6 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.015/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 13x6.9x6.2 |
Product features
1. The machine is primarily composed of a bed, worktable, movable gantry, vertical ram-type spindle head, hydraulic system, pneumatic system, cooling system, centralized lubrication system, electrical control system, and an automatic chip removal system.
2. In this series of machines, the worktable and gantry are separate, with the gantry moving along two bases. This design significantly enhances processing stability and precision while offering a high load-bearing capacity.
3. The worktable is made from high-quality gray cast iron.
The machine bed and worktable are constructed from high-grade gray cast iron (HT300), with stress relieved through two tempering heat treatments. To mitigate resonance generated during the drilling process and extend the service life of the carbide drill, the bed and worktable are designed as independent components.
1. The automatic chip removal and circulating cooling system minimize non-productive downtime and reduce labor intensity. The operator is only required to load and unload the workpiece and replace the drills.
2. The machine is equipped with a Taiwan-made BT50 spindle, featuring internal cooling and high precision. It is compatible with carbide drills. Additionally, the machine utilizes a pneumatic tool change cylinder, facilitating easier tool changes. The high-power main spindle motor is driven by a servo-driven synchronous belt, allowing it to support a wide range of rotational speeds.
3. This CNC drilling machine is engineered based on the specific characteristics and precision requirements of the workpiece. Its compact design and flexibility ensure optimal performance, effectively meeting processing needs. Whether the holes are arranged in a circular or linear pattern, the machine delivers fast and precise results. As such, it represents a highly cost-effective solution.
The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for the accurate processing of plate-type components and structural parts. This equipment is specifically tailored for handling workpieces such as flanges, discs, rings, and flat plates, provided the material thickness falls within the machine’s specified effective machining capacity.
In steel structure manufacturing facilities, this plate drilling machine executes precise drilling and milling operations on structural plates and connecting components, providing a dependable foundation for the robust assembly of steel frameworks. Within the wind energy sector, it delivers high-precision machining for wind turbine towers and flanges—essential processes that guarantee these components can withstand harsh environmental conditions, including extreme winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections capable of enduring dynamic loads throughout the bridge’s extended service life.
