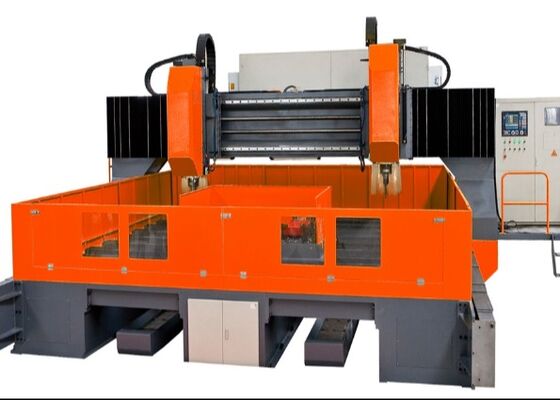

M30 Drilling Head Tapping Diameter CNC Gantry Drilling Milling Machine 2500mm Horizontal Stroke

M30 Drilling Head Tapping Diameter CNC Gantry Drilling Milling Machine 2500mm Horizontal Stroke

Product Introduction:

This CNC gantry drilling system is specifically designed for drilling, chamfering, tapping, and milling operations on plate and structural components. It is primarily employed for high-efficiency drilling of flanges, discs, rings, plates, and other workpieces within the specified thickness range. The system is capable of processing both through-holes and blind holes on single-material and composite materials. Equipped with digital control, the machining process ensures smooth operation and user-friendly interface. The equipment supports automation, provides high precision, and is ideal for manufacturing a diverse range of components, accommodating both small-scale batches and large production runs.

Specifications:

Equipment Structure:

The machine base is made from cast material and includes key components such as the worktable, movable gantry, sliding saddle, drilling and milling power head, automatic lubrication system, safety mechanisms, circulating cooling system, digital control system, and electrical system. It utilizes rolling hard rail pairs for support and guidance, along with precision lead screw pairs for driving motion. The machine is renowned for its high positioning accuracy and outstanding repeatability in positioning.

Product Features

1. Centralized Water Discharge System:

The machine is equipped with a standard centralized water discharge system. This internal water discharge mechanism effectively prevents the iron pin from becoming entangled with the tool during processing, thereby minimizing tool wear, extending tool life, and enhancing the surface finish of the workpiece. It safeguards the workpiece surface, protects the high-speed rotary joint from damage, and prevents impurities from obstructing the rotary joint. Consequently, it contributes to the overall quality of the workpiece and enhances operational efficiency.

2. Centralized Water Filtration System:

The machine is equipped with a centralized water filtration system designed to effectively remove impurities from the cutting coolant. The internal water spray system prevents iron pins from becoming entangled with the tool during processing, reducing tool wear, extending tool life, and improving the surface finish of the workpiece. The high-pressure water outlet pin effectively protects the workpiece surface, safeguards the high-speed rotary joint, and prevents impurities from obstructing the rotary joint. As a result, the system enhances the overall quality of the workpiece and boosts operational efficiency.

3. Automatic Chip Conveyor and Recirculating Cooling System:

The machine features an automatic chip conveyor located at the rear of the worktable, with a filter at the discharge end. The chip conveyor is of the flat-chain type. A cooling pump is positioned on one side, with the outlet connected to the centralized water filtration system via a hose. The coolant is directed into the chip conveyor, where the lift pump moves it into the central filtration system. The high-pressure cooling pump then circulates the filtered coolant for continuous cutting and cooling operations.

Additionally, a scrap collection trolley is provided for easy transportation of metal chips, offering a convenient solution for handling iron debris. The equipment includes both internal and external tool cooling systems: internal coolant is used for high-speed drilling, while external cooling is applied during light milling operations.

.

This advanced CNC gantry machine is specifically designed for high-efficiency drilling and marking of plate and sheet metal components. It has been meticulously crafted to ensure precise processing of plate-type workpieces and structural assemblies, making it ideal for machining flanges, discs, ring-shaped parts, flat plates, and similar components. A key operational requirement is that the thickness of the workpieces must align with the machine’s defined effective machining parameters.

In steel structure fabrication facilities, this equipment performs precision drilling and milling operations on structural plates and connection elements, providing a robust foundation for the dependable assembly of steel frameworks. In the wind energy sector, it delivers advanced, high-precision machining capabilities for wind turbine towers and flanges, ensuring these components are designed to withstand demanding environmental conditions, such as strong winds and temperature variations. For bridge construction projects, the equipment processes bridge girders and support brackets, facilitating the creation of stable, durable connections capable of withstanding dynamic loads throughout the bridge's long service life.
