| 機能: | パンチング、マーキング、シャーリング | 角の大きさ (mm): | 40х40х3～100х100х8（長穴）、40х40х3～100х100х10（丸穴） |
|---|---|---|---|
| 平鋼サイズ(mm): | 40×3～140×10 | チャンネル鋼 (mm): | 80×5～140×8 |
| 最大。穴径(mm): | Φ22×50（長穴）、Φ26（丸穴） | パンチ力(kN): | 800 |
| マーキング力(kN): | 630 | 切削抵抗(kN): | 1250 |

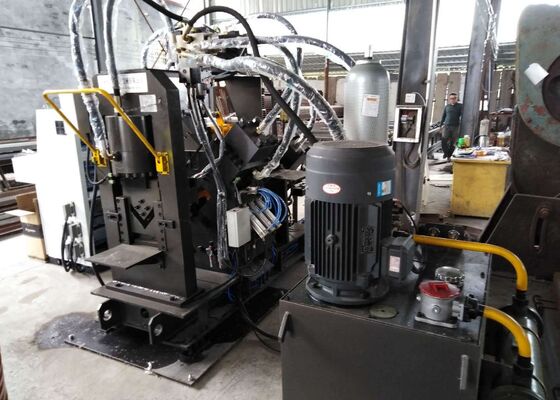

Electric Power Tower Iron Accessories Use Cnc Angle Punching Machine 1250KN Cutting Force
Product Introduction:
It is designed for punching, marking, and shearing on angle steel, flat steel, and channel steel. It is primarily employed in the fabrication of cross-arms, hoops, five-hole connecting plates, flat pads, and benches within electric power tower iron fittings. The machine is capable of performing punching, shearing, and marking in a single operation without the need for separate processes. It offers high processing accuracy, excellent production efficiency, and can be operated by a single individual. The machine is straightforward to operate and requires minimal training.
Product parameters:
| Model | JBC1010 |
| Functions | Punching, marking, shearing |
| Angle size (mm) |
40х40х3～100х100х8 (slotted hole) 40х40х3～100х100х10 (round hole) |
| Flat steel size (mm) | 40x3~140x10 |
| Channel steel (mm) | 80x5~140x8 |
| Max. hole diameter (mm) | Φ22х50 (slotted hole), Φ26 (round hole) |
| Punching force (kN) | 800 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1250 |
| Max. length of blank (m) | 9 |
| Max. length of finished (m) | 9 |
| Punches per side | 3 |
| Group of Marking letters | 4 |
| Dimension of letter (mm) | 14×10×19 |
| CNC axes | 3 |
| Cutting mode | Single blade cutting |
| Feeding speed of angle (m/min) | 80 |
| Processing precision | Accordance with GB2694 |
| Program function | Real time fault display |
| Programming mode |
Input by keyboard, RS232 interface,floppy disk and USB interface |
Product Feature:
1. This machine is primarily comprised of a transverse conveyor, rotary loading system, infeed conveyor, CNC infeed carriage, punching module, marking module, cutting module, unloading conveyor, as well as integrated hydraulic, electrical, and pneumatic systems.
2. Utilizing CNC technology with servo motor feeding, it delivers high efficiency and consistent workpiece precision. All critical hydraulic, pneumatic, and electrical components are sourced from globally recognized brands.
3. All primary cables, including rotary encoder cables and PLC communication cables, are imported shielded twisted-pair types. This effectively prevents accuracy deviations caused by signal interference.
4. The computer features a Chinese/English interface for intuitive operation and can display workpiece drawings. Programming is straightforward and compatible with data directly generated by lofting software. During program editing, only the workpiece dimensions, hole diameters, back marks, and quantity need to be entered.
5. The angle line is equipped with a supporting and pressing device to accommodate the processing of angles with larger bends.
6. The front and rear loading units have been fully upgraded, adopting a new structure that integrates the guide rail with a spring mechanism. This design is more rational and practical, effectively eliminating the shortcomings where the spring could not bear the material load.
7. Equipped with a self-diagnostic function for fault detection.
8. Single-blade shearing guarantees a smooth cut surface and optimizes raw material utilization.
This equipment is engineered for versatile CNC processing of structural steel elements, including the web surfaces of channel steel, both flanges of angle steel, and flat steel sections, which can also be formed into curved or arched profiles. It is capable of executing a variety of operations on these materials, such as precise marking, accurate punching, and high-quality shearing, delivering comprehensive processing in a single setup. By integrating these multifunctional capabilities, the machine ensures efficient and precise fabrication of angle steel, flat steel, and channel steel components, making it well-suited for manufacturing custom structural parts, prototypes, and sample pieces with consistent quality and dimensional accuracy.
It is utilized for punching, marking, and shearing of angle steel, flat steel, and channel steel. It is primarily applied in the fabrication of cross-arms, hoops, five-hole connecting plates, flat pads, and benches within electric power tower iron fittings.
