| パワーエレベータの定格荷重: | 700KN | パワースリップ定格負荷: | 700KN |
|---|---|---|---|
| パイプトリップ効率: | 45個/時間 | マシンパワー: | 9KW |
| 持ち上げ負荷: | 350KG | 揚程高さ: | 4000mm |
| オイルの管長さ: | 8500～9750mm | 全体のサイズ: | 11200×2300×2700mm |

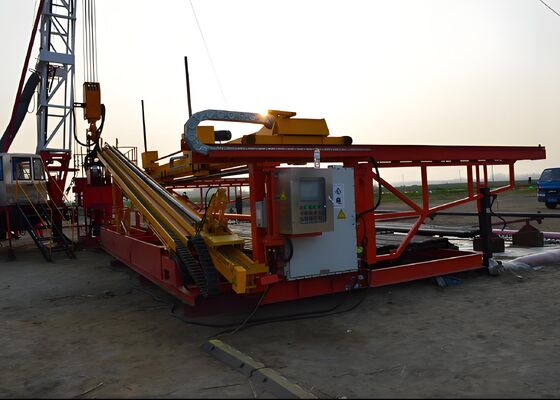

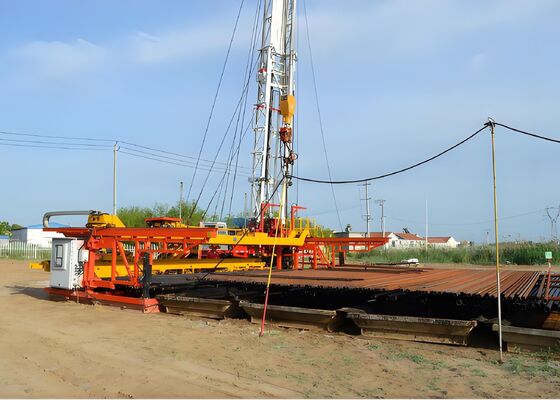

9KW Machine Power Oil Well Minor Repair Operation Machine 4000mm Lifting Height
Product Overview:
This equipment is predominantly designed for well maintenance operations in oil, gas, and water wells, encompassing tasks such as tripping and untripping of tubing, drill pipes, sucker rods, and pump retrieval. It represents the most advanced intelligent automated well repair technology available in both the domestic and global oil well servicing sector.
Specifications:
| Model | XJNC-70/35 |
| Power elevator load rating | 700 kN |
| Power slips rated load | 700 kN |
| Applicable pipe diameter | 2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU, 3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency | 45pcs/hour |
| Machine power | 9 kW |
| Lifting load | 350kg |
| Lifting height | 4000mm |
| Oil pipe length | 8500~9750mm |
| Qty. arranged pipes | 300pcs (3 1/2EU) |
| Overall size | 11200x2300x2700 |
Product Advantages:
1. This is an automated, intelligent well repair system capable of automatically gripping and releasing tubing, measuring and recording tubing length, switching between primary and secondary elevators, and autonomously raising and lowering tubing. By reducing the physical labor required during operations, it effectively shifts from manual labor to manual management.
2. The electronic control system is entirely digital, incorporating digital control, PLC-based centralized management, and fieldbus technologies. This enables the seamless integration of mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication functions.
3. The network, information, hardware, and software are standardized and highly modular, leading to intelligent systems with enhanced performance, straightforward and dependable operation, and excellent interchangeability.
4. Key hydraulic and pneumatic components are sourced from established, high-quality manufacturers, ensuring exceptional reliability and performance. All lighting, signal indicators, and electrical equipment on the instrument panel are powered by a rated 24V power supply.
