| ワークサイズ: | 1000x1000mm | 作業台のT溝幅(mm): | 28 |
|---|---|---|---|
| スピンドルテーパ: | BT40 | 最大。穴あけ径(mm): | Φ50 |
| 最大。厚さ(mm): | ≤180 | タッピング径: | M3-M20 |
| 紡錘の速度（R/Min）: | 30~3000 | サーボ主軸モータ出力 (kW): | 11 |

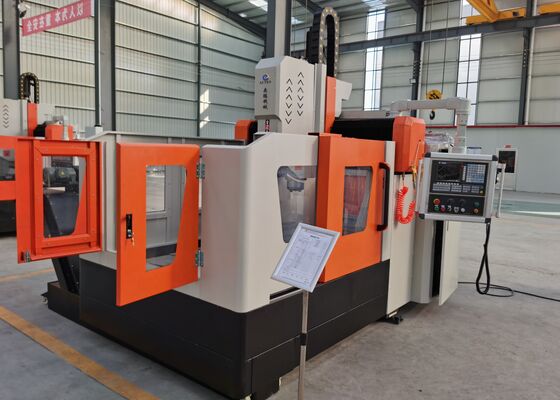

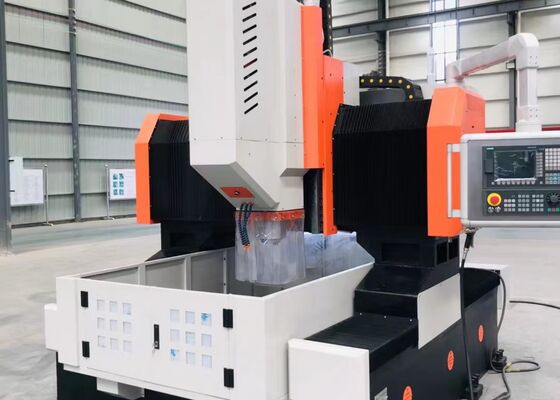

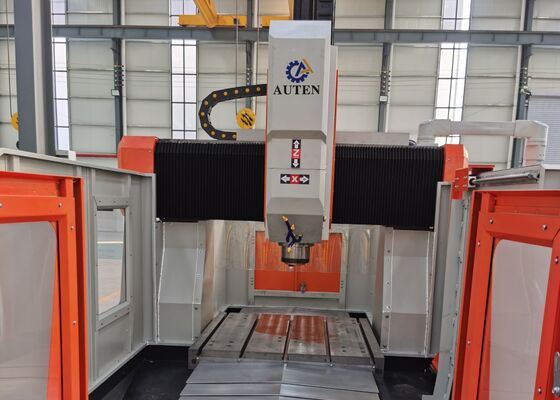

Wind Power Generation Use Thick Plate Drilling Fixed Worktable CNC Drilling Machine Plate Processing
Product Introduction:
The machine is primarily designed for drilling tube sheet plates and flanges, with a hole diameter of less than φ80mm. Its key functions include drilling, reaming, boring, tapping, chamfering, and milling. It is compatible with both carbide and standard drill bits. The CNC control system is user-friendly, ensuring ease of operation. The machine delivers exceptional accuracy in its performance.
Product configuration:
| Model | PHD1010 | |
| Workpiece size | LxW (mm) | 1000x1000 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT40 | |
| Max. drilling diameter (mm) | Φ50 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M20 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 11 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1000 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 1000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 3.2x2.2x2.2 |
Product Features
1. The machine frame and crossbeam are constructed with a welded fabricated structure, which undergoes comprehensive aging heat treatment to ensure high precision. The worktable, transverse sliding table, and ram are all made from cast iron, offering enhanced durability and stability.
2. The dual servo drive system on both sides of the X-axis guarantees precise and parallel movement of the gantry, ensuring excellent squareness between the Y and X axes.
3. The worktable is constructed from cast iron, ensuring stable and reliable performance.
4. The drilling spindle is a rigid, high-precision BT40 type, equipped with an internal cooling system for efficient operation and easy tool changes. The spindle speed ranges from 30 to 3000 rpm.
5. Two plate-chain type scrap removal devices are installed on both sides of the worktable. These devices collect scrap and coolant, allowing for efficient recycling of the cooling liquid.
6. The machine is equipped with two cooling methods – internal and external cooling – both providing sufficient pressure and flow rate. Additionally, it features coolant level monitoring components to ensure proper lubrication and cooling of the drilling tools.
7. The machine includes an automatic lubrication system that delivers consistent and reliable lubrication to critical moving components, such as the guide rails, ball screws, and roller bearings, thereby extending the service life of these key parts.
8. The CNC control system is the Siemens 828D, offering robust functionality, automatic CAD-CAM programming, user-friendly operation, along with automatic alerts and error compensation.
9. The machine utilizes key outsourced components from globally recognized brands, including the linear roller guide rails, ball screws, servo motors and drivers, spindle, CNC control system, hydraulic pump, valves, and cooling pumps. This ensures the machine's exceptional reliability and stable performance.
The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for the precise processing of plate-shaped components and structural elements. This machine is specifically tailored for handling workpieces such as flanges, discs, rings, and flat plates, provided that the material thickness is within the machine's designated effective machining range.
In steel structure manufacturing facilities, this plate drilling machine executes precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the construction of resilient steel frameworks. In the wind energy sector, it delivers high-precision machining for wind turbine towers and flanges—essential processes that guarantee these components can withstand harsh environmental conditions, including extreme winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and supports, ensuring the formation of stable and durable connections capable of withstanding dynamic loads throughout the bridge's extended service life.
