| 関数: | 曲げ | オイルタンク圧 (kN): | 3150 |
|---|---|---|---|
| 外側両面曲げ寸法(ヒールアップ)(mm): | L80*7～L360*40 | 角の両面の外向きの屈曲度 (°): | 30 |
| 山形鋼前方片曲げ範囲(mm): | L100*10～L300*30 | 山形鋼の前方片曲げ角度(°): | 20 |
| 折りたたみのプレートの厚さ (mm): | 2から20 | 折りたたみのプレートの幅 (mm): | 900 |
| プレートの屈曲度 (°): | 90 |

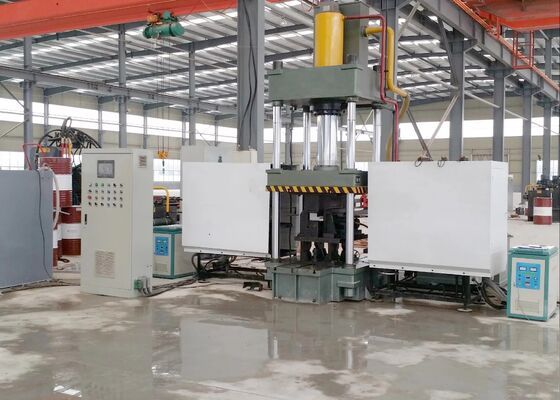

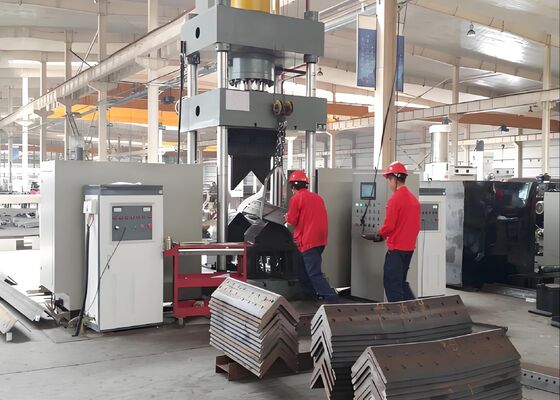

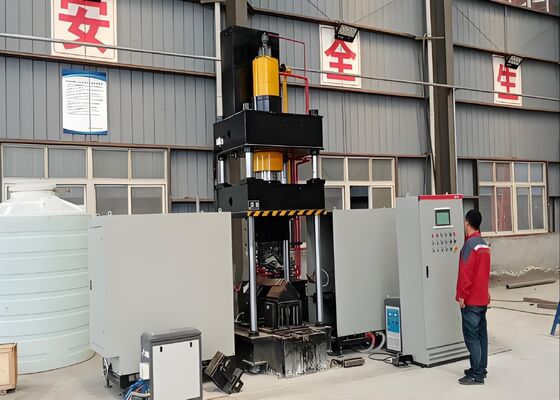

Telecom Tower Production Industrial CNC Angle Bending Line Transmission Line Tower Fabrication
Product Introduction:
This CNC Thermal Bending System is meticulously engineered and thoroughly tested in the factory to guarantee precise bending of angle steel profiles and flat metal sheets. It is specifically designed to meet the rigorous production demands of industries such as structural steel fabrication, mechanical component manufacturing, and architectural metalworking. Featuring exceptional forming accuracy and reliable operational consistency, this system ensures that bent angle steel and metal panels adhere to exact dimensional and structural requirements, facilitating smooth and efficient progress in subsequent downstream manufacturing processes.
Product parameters:
| Model | HQ250-700 | HQ360-900 | ||
| Oil Tank Pressure (kN) | 1600 | 3150 | ||
| Outside double-sided bending size (Heel up ) (mm) | L80*7~L250*32 | L80*7~L360*40 | ||
| Outward double-sided bending degree for angles (°) | 30° | 30° | ||
| Angle steel forward single bending range (mm) | L80*7~L200*20 | L100*10~L300*30 | ||
| Angle steel forward single bending degree (°) | 20° | 20° | ||
| Bending Plate thickness (mm) | 2~16 | 2~20 | ||
| Bending Plate width (mm) | 700 | 900 | ||
| Bending degree for plates (°) | 90° | 90° | ||
| Angle opening & closing range (mm) | L80*7~L200*16 | L100*10~L300*30 | ||
| Angle opening & closing degree (°) | 16° | 16° | ||
| Oil Tank Stroke (mm) | 800 | 950 | ||
| Max.opening height (mm) | 1300 | 1400 | ||
| Motor Power (kW) | 15 | 22 | ||
| Heating power (kW) | 60*2 | 120*2 | ||
| CNC Axis | 3 | 3 | ||
| Oil tank capacity (L) | 630 | 720 | ||
| Overall size (m) | 3.5x4.5x4.1 | 4.2x4.5x4.1 | ||
Product Features:
1. The system is integrated with a Computerized Numerical Control (CNC) Programmable Logic Controller (PLC) and is equipped with a user-friendly touchscreen interface, enabling efficient data entry and real-time monitoring of operational parameters. This configuration guarantees a seamless and intuitive experience for routine operations.
2. The machine utilizes cutting-edge intelligent ultrasonic frequency induction heating technology—an advanced solution that enhances production efficiency, reduces manufacturing costs, and ensures full compliance with the facility’s environmental protection standards and regulations.
3. As a fully integrated solution, this equipment eliminates the need for supplementary tools or mold adjustments, thus simplifying and optimizing the entire production process setup.
4. By incorporating Computerized Numerical Control (CNC) technology, this system guarantees precise bending of workpieces, consistently upholding high product quality standards while simultaneously improving overall production efficiency.
5. The equipment is outfitted with an integrated hydraulic system and an electrical control unit, providing an advanced configuration that facilitates intuitive, user-friendly operation, ensures safe and dependable performance, and meets the requirements of high-volume production.
6. Cold-pressing technology is suitable for processing angle steel components with dimensions up to L100×L100×10 (mm), as long as the required bending angle does not exceed 5 degrees.
7. The standard cycle time for cold-pressing operations is 10 seconds per workpiece, whereas the thermal processing cycle spans 120 seconds per unit (subject to the material grade and dimensional specifications of the components being processed). Furthermore, fabrication begins only once the heating temperature reaches 800 degrees Celsius (the red-hot phase), with precise process parameters established based on the material type and required bending angle tolerances.
8. During the thermal treatment phase, once the process parameters are set, operators can begin the cycle by either pressing the start button or activating the foot pedal switch to initiate the fully automated operation sequence. This sequence follows a predetermined series of steps, including the heating feed, application of thermal energy, retraction of the heating elements upon completion, clamping and compression of the workpiece, ram lifting, and the final unloading and retrieval of the processed workpiece.
9. In the integrated thermal processing and cold-pressing mode, once the process parameters are set, cold-pressing operations can commence immediately. The pressure ram does not need to return to its home position; instead, the lower pressing die is raised to create a 100mm clearance, allowing for the effortless removal of the workpiece. This optimized operational flow greatly enhances overall process efficiency.
These test samples, derived from the production line of angle steel punching, cutting, and marking machinery, adhere to the standard specifications and processing parameters typically employed in the angle steel tower industry. They offer users a straightforward means of evaluating the equipment’s processing quality, precision, and workmanship—critical performance metrics that highlight the equipment’s capability to meet the stringent operational demands of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to severe weather conditions and significant structural loads, this equipment plays a crucial role in processing the angle steel components that form the primary load-bearing framework of the towers. It consistently performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring precise accuracy and outstanding structural integrity. This process enhances the overall durability of the transmission towers, which is vital for the reliable and uninterrupted operation of UHV power transmission systems.
