| 関数: | 穴あけとマーキング | アングルサイズ(mm): | 140*140*10~250*250*32 |
|---|---|---|---|
| 最大。原料の長さ(m): | 14 | マーキング力(kN): | 1000 |
| 文字グループの数: | 1 | 文字数: | 18 |
| 文字サイズ(mm): | 14*10*19 | 正確な距離の範囲(mm): | 50～220（無段階） |

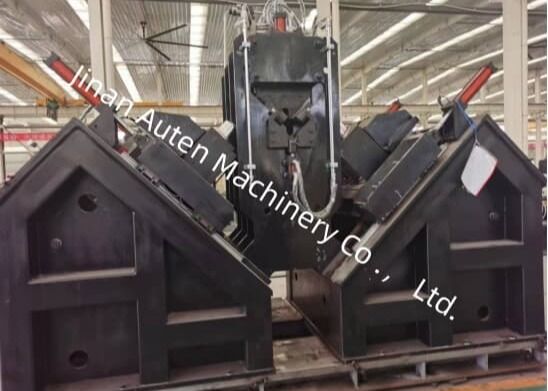

Angle Steel Processing CNC Angle Drilling And Marking Line Steel Frame Fabrication
Applicable Industry:
The machine is specialized equipment designed for drilling and marking angle steel, primarily used in the angle steel tower industry.
Product Composition:
This machine primarily consists of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a drilling unit, a marking unit, an unloading conveyor, along with hydraulic, electrical, and pneumatic systems, among other components.
Main Parameters:
| Model | ADM2532 |
| Angle size (mm) | 100×100×10~250×250×32 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | BT40 |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | 6000 |
| Max.cutting speed of drill (m/min) | 200 |
| CNC axes | 9 |
| Range of back mark (mm) | 50-220 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | Air atomization dry internal cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 34×8×3 |
Product Features:
1. This processing line consists of a transverse conveyor, an overturn conveyor, an infeed conveyor, a CNC infeed carriage, two drilling units, a marking unit, an automatic unloading conveyor, along with the corresponding hydraulic station and electric cooling system. Utilizing CNC technology and servo motors for feeding, the system ensures high efficiency and stable workpiece precision.

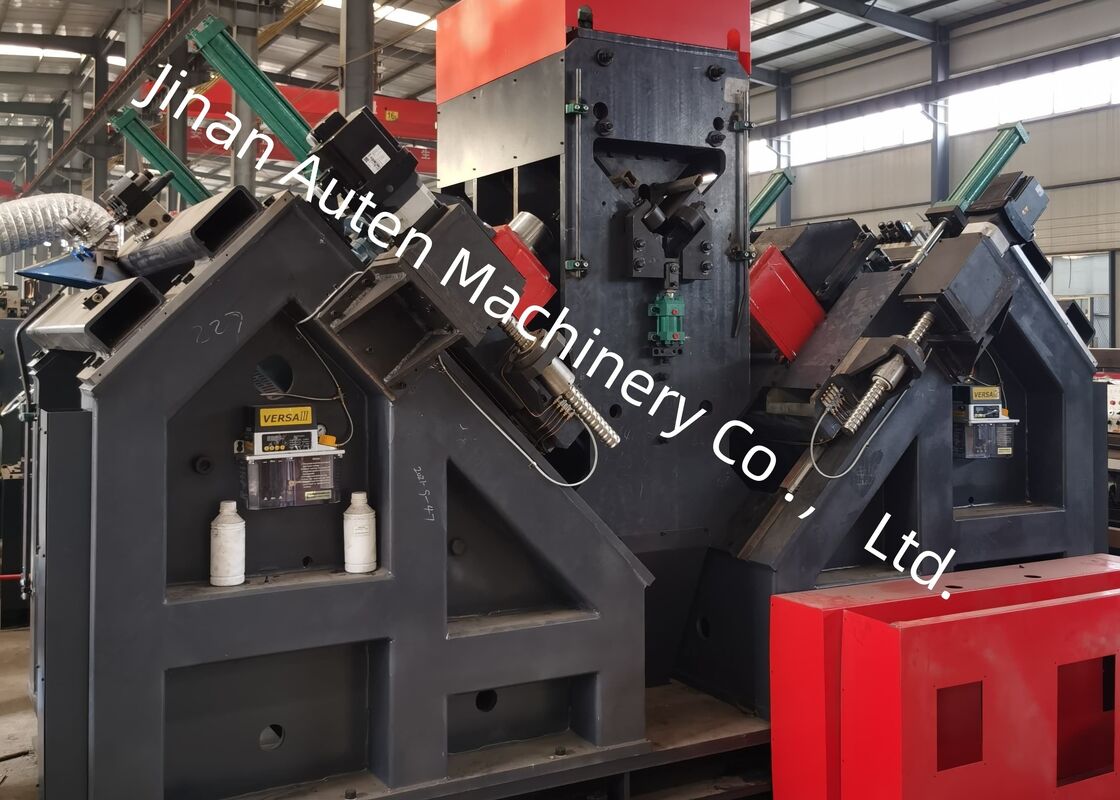

2. A drilling unit is installed on each side, with each unit capable of holding three drills of varying sizes. The drilling units can perform CNC-controlled movements to adjust the drilling positions, ensuring precise hole accuracy.
3. The rotation speeds of all spindles are continuously adjustable via a transducer, while the feeding speeds are also infinitely adjustable through speed control valves. The transition between rapid feeding, working feeding, and rapid withdrawal of the spindles is fully automated.
4. The drilling line includes a single marking unit, with the marking positions easily preset. Marking, clamping of the workpiece, and infeed for drilling are all powered by the hydraulic system. Key components are sourced from international suppliers. A circulating cooling system is employed to extend the lifespan of the drills.
5. Both marking and drilling are fully automated, and all completed angles are unloaded by a pneumatic turnover device, reducing the workload for operators and offering distinct advantages over other manufacturers.
6. The control system is composed of the host computer, servo motor, PLC, external monitoring switches, and other components. By simply inputting the workpiece dimensions, the processing program is automatically generated. Additionally, the program can be saved, selected, displayed, and communicated based on the workpiece number.
7. The machining line is equipped with supporting and pressing devices to accommodate the processing of angles with larger bends.
These samples represent a range of standard specifications and hole configurations of angle steel commonly used in the construction of transmission line towers. They act as a visual reference for potential users or inspectors to evaluate the operational performance of the equipment, providing clear and quantifiable benchmarks to assess whether the equipment meets the necessary manufacturing standards for transmission line tower production.
In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to harsh weather conditions and significant loads, this equipment is indispensable for processing the angle steel components that form the primary load-bearing structures of the towers. It efficiently carries out drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural components, ensuring precise dimensional accuracy and reliable connection performance. Consequently, it plays a vital role in maintaining the long-term structural integrity and stability of the transmission towers throughout their operational life.
