| 関数: | 掘削とマーキング | 角度サイズ（mm）: | 140*140*10〜250*250*32 |
|---|---|---|---|
| マックス。原材料の長さ（m）: | 14 | マーキングフォース（kn）: | 1000 |
| キャラクターグループの数: | 1 | キャラクターの数: | 18 |
| 文字サイズ（mm）: | 14*10*19 | 正確な距離（mm）の範囲: | 50〜220（ステップレス） |

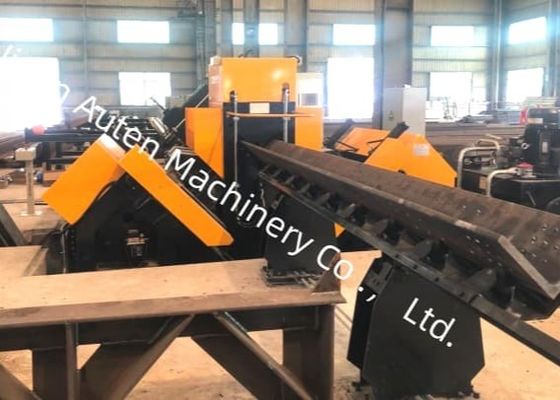

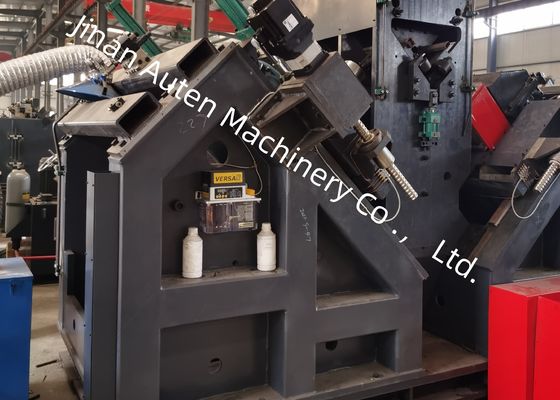

2 Groups 6 In Total Drill CNC Angle Drilling Machine 40m/Min Max Feeding Speed Of Angle
Product Usage:
This production line is purpose-designed for the drilling and stamping of large-dimension, high-strength angle steel used in transmission line towers. All required holes on the angle steel can be machined on this line, delivering superior hole quality, high positional accuracy, as well as excellent production efficiency and advanced automation performance.
Main parameters:
| Model | ADM2532 |
| Angle size(mm) | 140*140*10~250*250*32 |
| Max. length of raw material (m) | 14 |
| Marking force(kN) | 1000 |
| No. of character group | 1 |
| No. of character | 18 |
| Character size (mm) | 14*10*19 |
| Range of accurate distance(mm) | 50~220(Stepless) |
| No. of drill on each side | 3(2 groups, 6 in total) |
| No. of blade on each side | 3 |
|
Taper of drilling spindle |
BT40 |
| Max. drilling diameter (mm) | Φ40 |
| Max. Spindle rotation speed(r/min) | 6000 |
| Drill cooling unit | MQL 360-2(Dry cooling) |
| Cooling unit oil storage capacity | 2L |
| Cutting oil | Vegetable oil-based micro cutting oils(2000-25) |
| fuel consumption | 5~50ml/h |
| CNC trolley drive type | AC servo motor,rack and pinion driving |
| Max. feeding speed of angle(m/min) | 40 |
| AB-axis alignment movement drive method | Linear Motion Guide;AC servo motor;Ball screw Secondary driving |
| Max. skateboard travel speed of drilling head(m/min) | 10 |
| Drilling head drive type | Linear Motion Guide;AC servo motor;Ball screw Secondary driving |
| Max. feeding speed of drilling head(m/min) | 14 |
| Feeder trolley arm working method | Vertical lifting type |
| Number of tipping cylinders on discharge side | 4 |
| Hydraulic station cooling method | Air cooling |
| No. of CNC axes | 9 |
| Air pressure(MPa) | 1 |
| Total power | About 150KW |
Product Features:
1. High Level of Automation
The production line is fitted with an automatic loading device (including a transverse feeding channel and a rotating loading frame), an automatic unloading device, and an automatic feeding device. All holes and steel mark markings on the angle steel can be processed in a single pass through the production line, and the entire machining process eliminates the need for manual intervention—this significantly reduces the labor intensity of workers.
(1) The welding quality of each welded component of the equipment complies with the relevant specifications of JB/T8609, and the length and spacing of intermittent welds are kept consistent.
(2) Forged components shall be free from defects such as interlayer separation, folding, cracks, sand holes, and air holes.
2. Typing Unit Configuration & Performance
The typing unit adopts a closed-frame structure, featuring high strength and stable frame performance. The printing unit is equipped with a bed support (fixed to the machine base), a movable bed, and a hydraulic-driven press head character box. It performs printing at the positions specified in the drawing in accordance with computer instructions.
To expand the machine’s processing range, a manual adjustment mechanism is additionally integrated. By using this mechanism, the downward position of the movable frame (i.e., the position of the character head) can be adjusted, enabling adaptation to the typing positions of angle steel with different specifications.
These specimens cover a range of common specifications and hole patterns of angle steel used in transmission line towers. They allow potential users or inspectors to visually verify the equipment’s operational performance, thereby providing concrete and intuitive references for evaluating whether the equipment meets the practical production requirements of transmission line tower manufacturing.
In ultra-high voltage (UHV) transmission line construction—where towers must withstand extreme weather and heavy loads—this equipment plays a pivotal role in processing angle steel components for the towers’ main framework. It effectively fulfills drilling and stamping tasks for angle steel used in tower bodies, cross-arms, and other key structural parts, ensuring precise dimensional accuracy and strong connections to safeguard the towers’ overall stability throughout their service life.
