| 関数: | パンチ、マーキング、切断 | 角の大きさ (mm): | ∟40×40×3～∟140×140×12 |
|---|---|---|---|
| マックス。空白の長さ（m）: | 12 | マックス。終了の長さ（m）: | 10 |
| マックス。パンチング（dia。хthi。）（mm）: | φ26×12（材料：Q345 510N/mm2） | 片側あたりのパンチ: | 2 |
| パンチングフォース（kn）: | 630 | マーキングフォース（kn）: | 630 |
| 切断力（kn）: | 1800 |

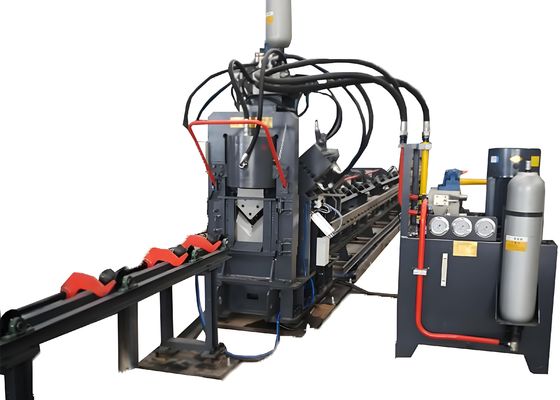

Fully automatic CNC Angle steel punching marking and wire cutting integrated machine
Applicable Industry:
The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.
Specifications:
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟140×140×12 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×12(Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
Cutting force (kN) | 1800 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
Product Composition:
ThiThis machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
This machine is specifically engineered for drilling and stamping large-size, high-strength angle steel, a critical material in the fabrication of transmission line towers.
From routine maintenance to monumental projects where resilience against extreme weather and massive loads is non-negotiable our machine delivers unmatched precision. It expertly processes angle steel for every critical component, from tower bodies to cross arms guaranteeing perfect fits, robust connections, and ultimately, unshakable tower stability. Engineered for Precision. Built for Endurance.
