| 最大ワークサイズ(mm): | 1500*800 | 最大。打ち抜き径(mm): | Φ26 |
|---|---|---|---|
| 最大。穴あけ径(mm): | Φ50 | ドリルスピンドルのテーパ: | BT50 |
| パンチ力(kN): | 1000/1200 | マーキング力(kN): | 800/1200 |
| 文字サイズ(mm): | 14*10*19 | 数量性格の: | 12 |

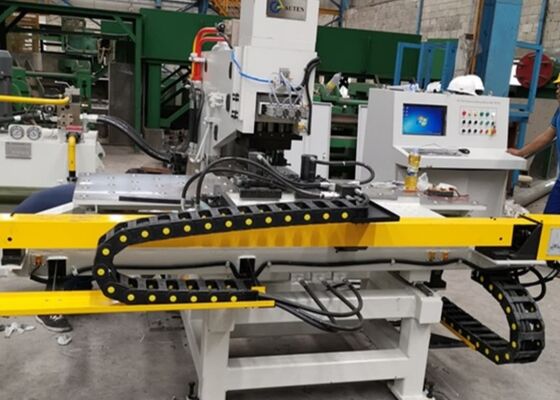

Applied To The Steel Structure Industry Cnc Plate Punching Machine 800/1200KN Marking Force
Product Introduction:
This CNC plate punching and drilling machine is meticulously designed for the steel tower fabrication sector, providing outstanding precision in punching, marking, and drilling processes for steel plate components. Furthermore, it demonstrates remarkable versatility, enabling the execution of punching, drilling, and marking operations across a wide variety of metal parts, serving diverse industrial applications.
Product Configuration:
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product feature:
1. The CNC channel steel punching and marking machine is constructed with a sturdy C-type welded frame, delivering exceptional structural stability and generous operational space. It incorporates three die stations, with one exclusively reserved for marking, and features automatic indexing between stations to optimize workflow efficiency. The clamping system offers high adaptability, accommodating a wide variety of workpieces, while a zero-reference baffle ensures precise alignment. Workpieces are firmly secured on a ball-bearing worktable, allowing smooth and effortless handling. Movement along the X and Y axes is powered by servo motors, with force transmitted via high-precision ball screws, and punching position accuracy is governed by a Programmable Logic Controller (PLC), enabling full automation of the machining process. Once a workpiece program is entered, the system supports storage, retrieval, and reuse, facilitating continuous batch production cycles.
2. The CNC steel drilling machine utilizes advanced Computer Numerical Control (CNC) technology in combination with servo motor-driven feed mechanisms, delivering exceptional operational efficiency and consistent precision across a diverse range of workpieces.
3. The machine’s principal functional components are designed with a modular architecture, facilitating straightforward maintenance and streamlining repair procedures.
4. The CNC metal plate punching and marking machine consolidates punching, marking, and drilling operations into a single workflow, providing multi-functional capabilities within one seamless operational cycle.
5. The drilling module incorporates essential functionalities including rapid downward feed, precise machining advancement, and swift retraction, substantially improving operational efficiency in practical work settings.
6. Fitted with a sophisticated self-diagnostic fault detection system, the machine quickly identifies any operational anomalies, allowing timely maintenance interventions and ensuring uninterrupted production reliability.
7. The programming workflow is engineered with a focus on user-friendliness: operators can directly enter hole diameters, positional coordinates, and batch quantities into the control system. Additionally, the system is compatible with programs generated by specialized lofting software or supports direct conversion of CAD/CAM files, ensuring smooth and efficient program execution.
Machine details:
This specialized metalworking system is meticulously designed to carry out punching, marking, and drilling operations on steel plates within the steel tower fabrication industry. It provides exceptional machining accuracy, complying with stringent tolerance and surface finish requirements. In addition to its primary role in the steel tower sector, this highly adaptable equipment reliably performs punching, drilling, and marking operations on metal plates across a broad range of industrial applications. It consistently delivers superior operational efficiency and precise processing for all types of metal workpieces, thereby optimizing workflows and enhancing product quality across multiple industrial domains.
