CNCの訓練のための中国の最上質の製造、打ち、角度の機械、ビーム、版およびフランジを形作る製粉切れる!
新しいものをしなさい、よい物をしなさい!
|
|
商品の詳細:
お支払配送条件:
|
| プレートサイズ: | 1500x800mm | 状態: | 5~25mm |
|---|---|---|---|
| パンチングフォース: | 1000/1200kN | マーキングフォース: | 800/1000kN |
| CNCかどうか: | CNC | ダイス場所: | 4 |

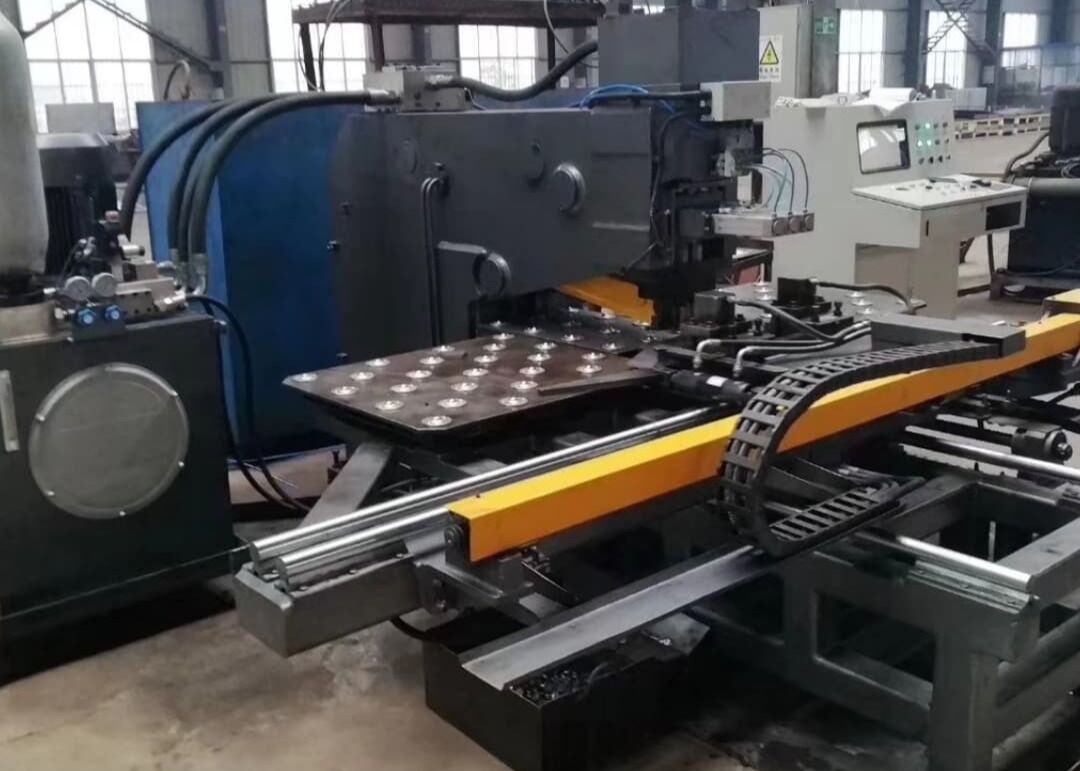

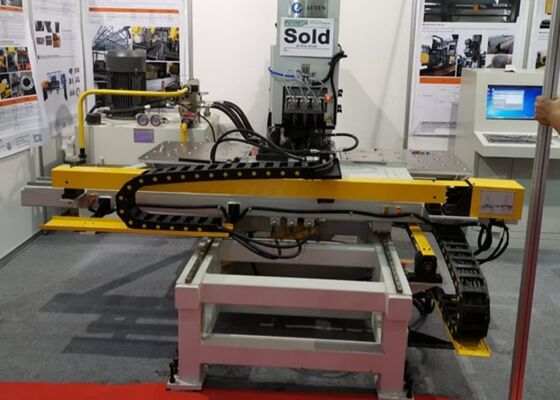

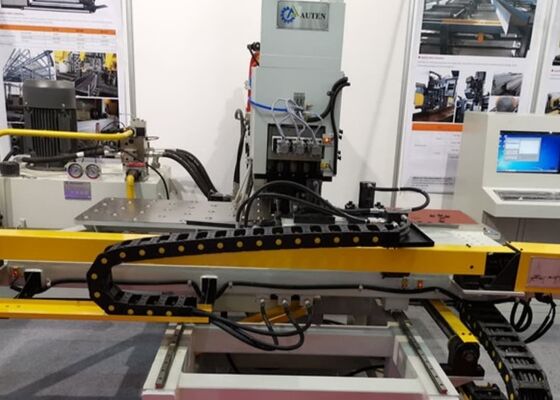

Steel Fabrication Companies CNC Hydraulic Punching Drilling Combined Machine Structural Steel Use
Applicable industry:
A highly specialized CNC machine engineered for the punching and marking of steel plates in the steel tower industry. Additionally, it is employed for similar punching and marking tasks across a range of other sectors.
Main Component:
This machine comprises the primary unit, workbench, hydraulic clamping system, drilling module, punching module, hydraulic power supply, electrical control panel, and an automated lubrication system.
Specifications:
| Model | BNCZ100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 25~280 | |
| Stroke of drilling spindle(mm) | 180 | |
| Rotation speed of drilling spindle(r/min) | 120~560 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*2.6 | |
Product feature:
1. The machine frame is fabricated using C-type plate welding, ensuring robust rigidity and providing a spacious work area. It is equipped with three die stations—two for punching and one for marking—with automatic die station switching. The clamping system is versatile, accommodating various workpieces, and features a reference block for precise positioning. The workpiece is supported by a roller-ball worktable. The X and Y axes are driven by servo motors and ball-screw systems, with position feedback monitored by a PLC, facilitating automated control of the punching operations. Operators can input the workpiece program, which can be reused for future tasks.
2. The machine integrates CNC technology and servo motor feeding, ensuring enhanced efficiency and maintaining consistent precision for the workpieces.
3. Essential functional components are designed with modular assembly, allowing for easy maintenance and repairs.
4. It is capable of executing both punching and marking operations on a single steel plate.
5. The system offers intuitive programming, supporting CAD drawings and seamlessly integrating with programs generated by lofting software. It is fully compatible with TEKLA lofting software files, including the NC1 format.
6. The machine is equipped with a self-diagnostic fault detection feature.
7. The X and Y axes are driven by servo motors, ball screws, and linear guides, ensuring superior precision.
8. The main structure is built with a C-shaped welded steel plate framework, providing exceptional rigidity and a large operational area.
9. The machine is equipped with three workstations, including one marking station, with automatic station switching functionality.
10. The clamping system is engineered to handle workpieces of varying thicknesses. Using a reference zero block, the workpiece is supported on a ball-bearing worktable.
11. The X and Y axes are driven by servo motors, ball screws, and high-precision linear guides, powered by a dual-axis CNC system to ensure accurate punching position control.
12. The entire processing workflow is fully automated, requiring the operator to simply input the workpiece drawing into the computer.
Machine details:
This specialized metalworking system is custom-designed to execute punching, marking, and drilling operations on steel plates used in the steel tower manufacturing industry. It ensures exceptional machining accuracy, meeting stringent tolerance requirements and surface finish specifications. In addition to the steel tower sector, this versatile equipment provides reliable punching, drilling, and marking capabilities for metal plates across a broad spectrum of industries. It consistently delivers high operational throughput and precision processing for all types of metal workpieces, thereby optimizing workflow efficiency and improving product quality in diverse industrial applications.
