商品の詳細:
お支払配送条件:
|
| プレートサイズ: | 1500x800mm | 状態: | 5~25mm |
|---|---|---|---|
| パンチングフォース: | 1000/1200kN | マーキングフォース: | 800/1000kN |
| CNCかどうか: | CNC | ダイス場所: | 4 |

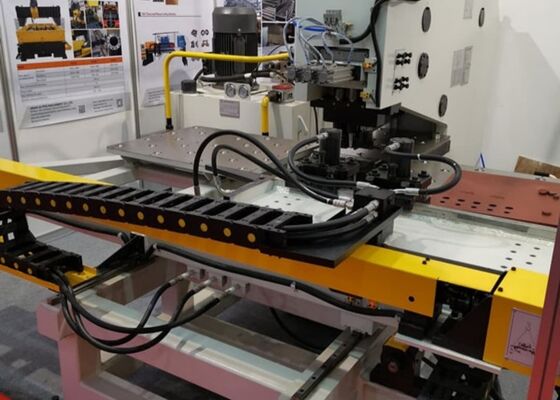

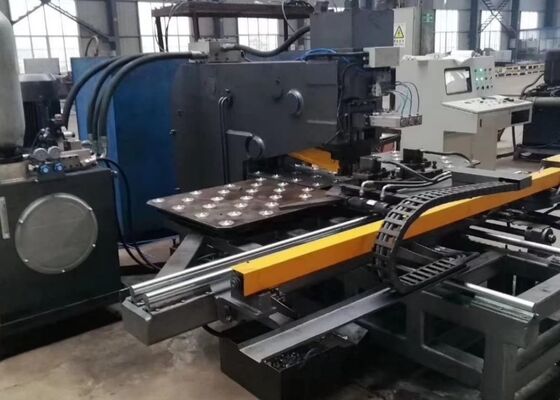

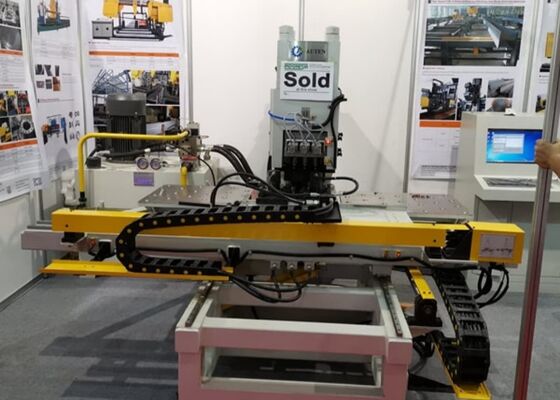

Steel Structure Fabrication PLC Controlled Punching Machine Transmission Tower Manufacturing
Applicable industry:
A specialized CNC machine designed for punching and marking steel plates within the steel tower sector. It is also utilized for punching and marking steel plates across various other industries.
Main Component:
This machine consists of the main unit, work table, hydraulic clamps, drilling module, punching module, hydraulic power unit, electrical control cabinet, and an automatic lubrication system.
Specifications:
| Model | BNCZ100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 25~280 | |
| Stroke of drilling spindle(mm) | 180 | |
| Rotation speed of drilling spindle(r/min) | 120~560 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*2.6 | |
Product feature:
1. The machine frame is constructed using C-type plate welding, ensuring high rigidity and ample working space. The machine is equipped with three die stations (two for punching and one for marking), with automatic die station switching. The clamping system is adaptable to various workpieces, featuring a reference block, and the workpiece is supported by a roller-ball worktable. The X and Y axes are controlled by servo motors and ball-screw drives, with position monitoring managed by a PLC, enabling automatic control of the punching process. Operators can input the workpiece program, which is reusable for subsequent operations.
2. Incorporate CNC technology and servo motor feeding, ensuring high efficiency and consistent workpiece precision.
3. Key functional components utilize modular assembly, facilitating straightforward maintenance and repairs.
4. Capable of performing both punching and marking on a single plate.
5. User-friendly programming that supports CAD drawings and integrates with programs generated by lofting software. It is compatible with TEKLA lofting software files, such as the NC1 format.
6. Equipped with a self-diagnostic failure detection feature.
7. The X and Y axes are powered by a servo motor, ball screw, and linear guide, ensuring enhanced precision.
8. The main body features a C-shaped welded steel plate structure, offering superior rigidity and an expansive operating area.
9. The machine is fitted with three working stations (including one typing position), with automatic station switching functionality.
10. The clamping system is designed to accommodate workpieces of varying thicknesses. With the benchmark zero block, the workpiece is supported by a ball worktable.
11. The X and Y axes are operated by servo motors, ball screws, and precision linear guides, driven by a dual-axis CNC system to accurately control the punching position.
12. The entire processing workflow is fully automated, requiring the operator only to input the workpiece drawing into the computer.
Machine details:
This professional metalworking system is custom-engineered to perform punching, marking, and drilling operations on steel plates for the steel tower manufacturing sector. It delivers premium machining precision, complying with rigorous tolerance criteria and surface finish standards. Beyond the steel tower industry, this highly versatile equipment further furnishes dependable punching, drilling, and marking functionality for metal plates across an extensive range of industrial fields. It maintains consistent operational throughput and processing accuracy for all categories of metal workpieces, thereby streamlining workflow efficiency and enhancing product quality across varied industrial applications.
