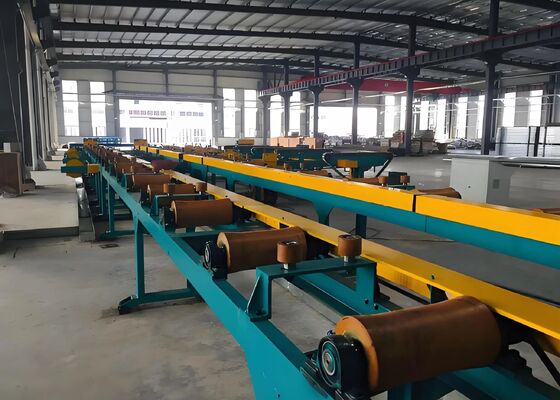

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry
Processing Range:
Round pipe production range: φ60-φ165mm
Square pipe production range: 50×50-125×125mm
Rectangular pipe production range: 40×60-150×100mm
Wall thickness: 2.0-6.0mm (round pipe), 2.0-5.5mm (square pipe)
Product Overview:
This line is primarily designed for producing electric-welded steel pipes with diameters ranging from 60 to 165 mm and wall thicknesses of 2.0 to 6.0 mm. It can also produce square, rectangular, and special-shaped pipes within the range of round pipes. By adding necessary equipment, it can subsequently produce API 5L pipe. This production line was designed and manufactured by integrating similar equipment from both domestic and international sources, taking into account my country's national conditions, and through bold innovation and extensive consultation with users. It boasts economical, reliable, and stable operation.
Steel Pipe Production Range
| Round Pipe | φ60 - φ165mm |
| Square Pipe | 50x50 - 125x125mm |
| Rectangular Pipe | 40x60 - 150x100mm |
| Wall Thickness | 2.0 - 6.0mm (Round Pipe), 2.0 - 5.5mm (Square Pipe) |
Production Process:
Uncoiling → Straightening, Clamping and Leveling → Shearing and Butt Welding → Looping → Forming, High-Frequency Welding, External Burr Removal, Online Zinc Refilling, Cooling, Sizing, Rough Straightening → Flying Saw Length Adjustment → Inspection and Collection → Packaging → Weighing → Labeling → Storage
Equipment composition and main parameters of each unit
1. Loading trolley:
| Use | Used to receive the steel coil, transport it to the uncoiler, and lift the steel coil to the center of the uncoiler cone head | ||
| Structure | It consists of a material rack, a traveling mechanism, a cylinder, a guide rail, etc. | ||
| load-bearing | ≤15 ton | Lifting method | hydraulic |
| Walking style | Motor with cycloid reducer drive | ||

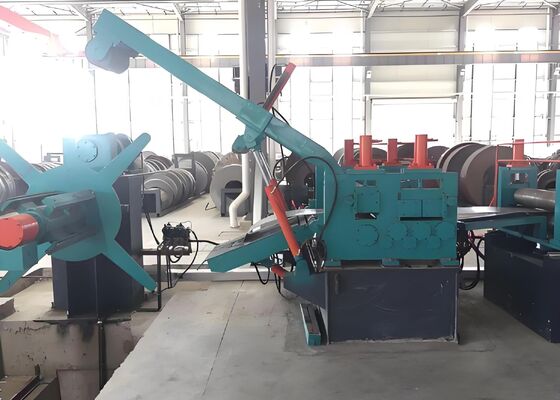

2. Uncoiler
| Use | Used to suspend and support steel coils to provide raw materials for the production line | ||
| load-bearing | ≤15tons | Braking method | Pneumatic brake, solenoid valve control |
| Expansion and contraction method | Single cone hydraulic expansion and contraction type | ||

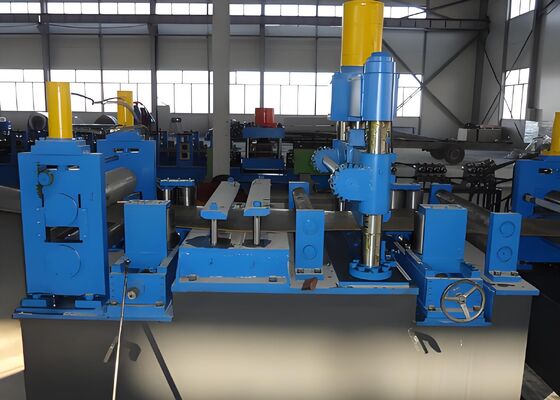

3. Straightening machine ZTZ (Y):
| Use | Used in conjunction with the uncoiler, the steel strip head is drawn out from the uncoiler and fed into the pinch leveler for leveling. | ||
| Structure | Pressing roller device, shovel head device, straight head device | ||
| Steel strip width | 190－500mm | Steel strip diameter | φ1100－φ2000mm |
| Motor power | 11kw | ||
4. Pinch leveling machine:
| Use | The steel strips drawn out from the uncoiler and the straightening machine are leveled at the head and tail and then delivered to the shearing and welding machine. | ||
| Structure | It consists of pinch rollers, leveling rollers and transmission devices | ||
| Steel strip width | 190－500mm | Steel strip diameter | φ1100－φ2000mm |
5. Shear butt welding machine:
| Use | Used for shearing and butt welding of irregular parts at the head and tail of strip steel to ensure continuous production of welded pipe units | |||
| Shearing strip steel | Strip width | 190－500mm | Strip thickness | 2.0－6.0mm |
| classify | Shear butt welding machine | Hydraulic shearing, mechanical tightening, manual welding | ||
6. Storage looper:
| Use | Used to store strip steel and continuously feed the pipe welding machine to ensure continuous production of the pipe welding machine | |||||
| Strip width | 190－500mm | Strip thickness | 2.0-6.0mm | |||
| Horizontal spiral looper | It consists of a clamping and feeding device, a looper assembly, a discharging device, and an electrical control device. | |||||
| motor | 22KW | Feeding speed | max=100 m/min | |||
| Storage tray diameter | 6.0m | Storage | 1000m | |||
