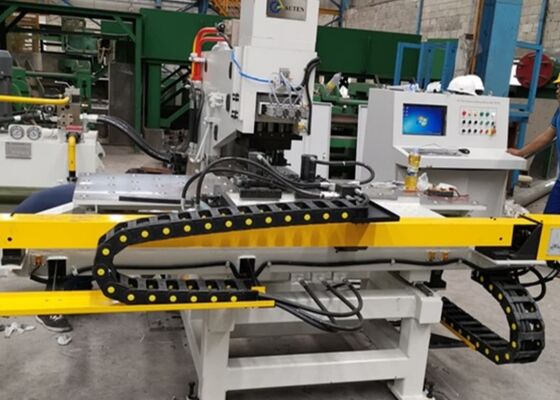

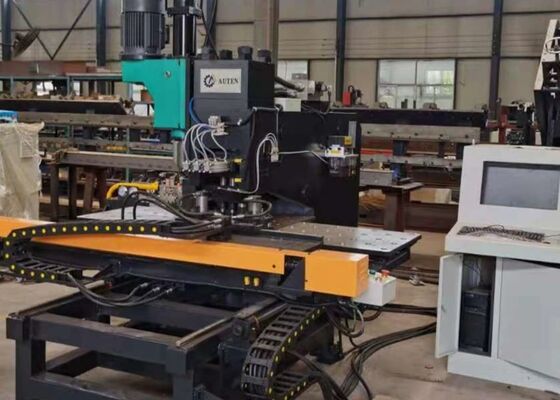

Model BNHD120 CNC Punching Drilling Marking Machine Used In Steel Structure For Construction Plant
Product Introduction:
This CNC plate punching and drilling machine is precisely engineered for the steel tower manufacturing industry, delivering exceptional accuracy in punching, marking, and drilling operations for steel plate components. In addition, it showcases impressive versatility, allowing the performance of punching, drilling, and marking tasks across a broad range of metal parts, catering to diverse industrial applications.
Product Configuration:
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product feature:
1. The CNC channel steel punching and marking machine features a robust C-type welded frame, providing exceptional structural integrity and ample operational space. It is equipped with three die stations, one of which is exclusively dedicated to marking, and supports automatic indexing between stations to enhance workflow efficiency. The clamping system is highly versatile, accommodating a wide range of workpieces, with a zero-reference baffle ensuring precise alignment. Workpieces are securely held on a ball-bearing worktable, facilitating smooth and effortless handling. Movement along the X and Y axes is driven by servo motors, with power transmitted through high-precision ball screws, while punching position accuracy is managed by a Programmable Logic Controller (PLC), enabling complete automation of the machining process. Upon entering the workpiece program, the system allows for storage, retrieval, and reuse, supporting continuous batch production cycles.
2. The CNC steel drilling machine incorporates advanced Computer Numerical Control (CNC) technology along with servo motor-driven feed systems, ensuring outstanding operational efficiency and consistent precision across a wide range of workpieces.
3. The machine's key functional components are engineered with a modular design, facilitating ease of maintenance and simplifying repair processes.
4. The CNC metal plate punching and marking machine integrates punching, marking, and drilling operations into a single process, offering multi-functional capabilities within a single operational cycle.
5. The drilling module includes critical features such as rapid downward feed, precise machining progression, and quick retraction, significantly enhancing operational efficiency in practical work environments.
6. Equipped with an advanced self-diagnostic fault detection system, the machine promptly identifies any operational issues, enabling timely maintenance actions and ensuring continuous production reliability.
7. The programming process is designed with a strong emphasis on user-friendliness: operators can directly input hole diameters, positional coordinates, and batch quantities into the control system. The system is also compatible with programs generated by specialized lofting software or allows for direct conversion of CAD/CAM files, ensuring seamless and efficient program execution.
Machine details:
This specialized metalworking system is specifically engineered to perform punching, marking, and drilling operations on steel plates within the steel tower manufacturing sector. It delivers outstanding machining precision, meeting rigorous tolerance and surface finish standards. Beyond its core application in the steel tower industry, this highly versatile equipment reliably executes punching, drilling, and marking tasks for metal plates across a wide array of industrial sectors. It consistently ensures superior operational efficiency and precise processing for all types of metal workpieces, thereby streamlining workflows and enhancing product quality across multiple industrial applications.
